Installation
2-Way Full Range, 1.4" x 12"
850W  /  50Hz - 18kHz  /  90° x 60°

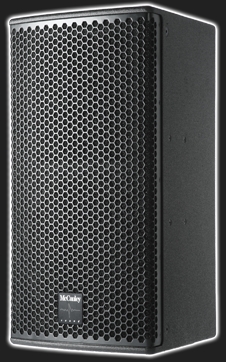

The C112-96 is a two-way, full range loudspeaker, designed specifically for permanent installations. It is comprised of the McCauley 77100 12” cone driver and a 3.0” diaphragm compression driver mounted to a rotatable 90° x 60° waveguide.

The 77100 features a large 4” aluminum voice coil to improve power handling, an FEA optimized, field serviceable ferrite magnet structure, and a lightweight hybrid paper composite cone. The new cone body balances high stiffness, to keep breakup modes above the crossover frequency, with the internal damping that is inherent to paper cone loudspeakers.

The coupling of the cone driver and high frequency waveguide has been specially engineered to produce a rich and fully balanced sound from 50 Hz to 18 kHz. The C112 is available in either a bi-amplified or passive configuration and features a versatile rigging system.


The enclosure is constructed of 18mm 13-ply void-free birch plywood and is coated with a weather and wear resistant ProCoat™ polyurea hybrid finish. Loudspeaker components are protected by a flush mounted, wrap-around perforated steel grill lined with acoustically transparent foam. The grill and rigging components are weather protected with a heat cured epoxy powder coat finish.

3.0" Diaphragm Compression Driver
Flush Mount Wrap-Around Grill
U-Bracket Mounting System
14 3/8th Inch Eyebolt Suspension Points
Rotatable Waveguide
