General Staging
2-Way Full Range, 1.4" x 8"
575W  /  75Hz - 18kHz  /  80° x 50°

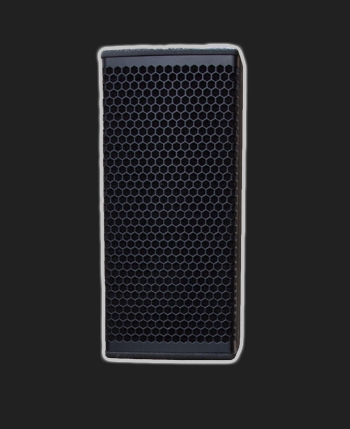

The S1 is a two-way, full range, multipurpose loudspeaker featuring a direct radiating 8” cone driver and a 3.0” diaphragm compression driver mounted to a rotatable 80° x 50° waveguide. The large diameter compression driver and 2” aluminum voice coil low frequency driver give the S1 unprecedented power handling for a cabinet its size. The coupling of the cone driver and high frequency waveguide has been specially engineered to produce a rich and fully balanced sound from 75 Hz to 18 kHz. The S1 can be powered in either a bi-amplified or passive mode, selectable from a jack panel switch. The S1 features a versatile rigging system, dual 37° stage monitor cut, integrated handle and pole mount.

The McCauley Sound S series is a family of full bandwidth multipurpose loudspeakers engineered specifically for professional touring, staging and commercial applications. Each loudspeaker enclosure is optimized for superior sound quality and power handling while maintaining a very small footprint and low stage profile. Flush mounted, wrap-around grills are used on all S series products to reduce cabinet reflections. Each full range product offers switchable bi-amp and passive modes, a pole mount and various stage monitor cuts.

Two sub-woofer systems, with integrated pole mounts, are available for applications which demand increased low frequency.


The enclosure is constructed of 18mm 13-ply void-free birch plywood and is coated with a weather and wear resistant ProCoat™ polyurea hybrid finish. Loudspeaker components are protected by a perforated steel grill lined with acoustically transparent foam. The grill and rigging components are weather protected with a heat cured epoxy powder coat finish.

3.0" Diaphragm Neodymium Compression Driver
Dual Stage Monitor Cut
High Performance Neodymium Components
Easy Grip Handles and Integrated Pole Mount
Flush Mount Wrap-Around Grill
Switchable Passive to Biamp
Rotatable Waveguide
Dual Neutrik NL4 Connectors
