Products: Systems > Installation > IN.LINE N90: Overview
Installation
2-Way Full Range, 1" x Dual 8", Line Array
60Hz - 18kHz  /  90°
The IN.LINE™ series is a high performance, high fidelity sound reinforcement system which combines the superior sound reproduction qualities of a line array with the flexibility, versatility and affordability that installers require. IN.LINE™ line array modules are available in four models; three full range modules, and one low frequency module. The N90 features a 90° horizontal coverage pattern. (the N120 features a 120° pattern, and the N60 delivers 60° horizontal coverage pattern.)

What makes the IN.LINE™ series unique, is that even though each full range module features a different horizontal coverage pattern, each IN.LINE™ module is engineered to operate in tangent with any other IN.LINE™ module, when deployed within the same “line array” column. All three modules can be combined in the same column to create seamless vertical coverage, (as determined by the size and curvature of the array) because all three full range modules have been designed to couple acoustically and form a single, undisrupted wavefront regardless of which horizontal patterns are chosen. Now, with the IN.LINE™ series, sound designers now have the ability to take advantage of the increased intelligibility, coherence and consistency of coverage that a line array solution can offer, yet can still create the highly specialized coverage patterns that the majority of complex acoustic installations require. Because sound designers can “mix and match” horizontal dispersion patterns within the same array, coverage zones can be easily defined and highly targeted, reducing unwanted reflections and acoustic “overspill”, all while maintaining a perfectly coherent vertical coverage pattern and highly consistent sound from the nearest listening position to the back of the room.

Finally, the IN.LINE™ series features a price point which is competitive enough to allow contractors and their customers to realistically make the transition from traditional loudspeaker clusters to a line array technology without jeopardizing the contractor’s ability to win bids.

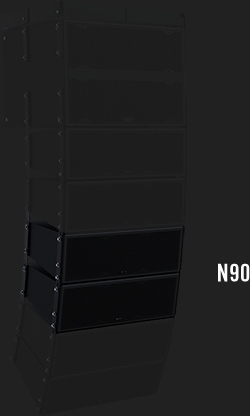

The N90 is a 2-way high/mid system line array module in a computer optimized enclosure. The N90 utilizes a 3-way biamplified complement of twin 8.8” cone drivers and a 1” exit extended high frequency compression driver. The enclosure is constructed of durable 12-ply void-free birch laminate, dadoed for strength and durability. All IN.LINE™ Modules ship with simplified rigging system which is designed to be set once and permanently installed. Perforated steel is employed for frontal protection of the loud speaker complement, hidden behind an attractive foam face.

IN.LINE Permenant Installation Rigging
Frequency Adaptive Steering
Lightweight Design
Low Profile Cell Design
Arrayable Pattern
Optimized for Intelligibility
Dual Terminal-Strip Connectors
Optional White Finish
McCauley Performance Class Componentry
Perforated Steel Grill
12-Ply Dadoed Construction
Durable ProCoat Elastomeric Finish
